Description:
EASY, SIMPLE, LIFESAVER.

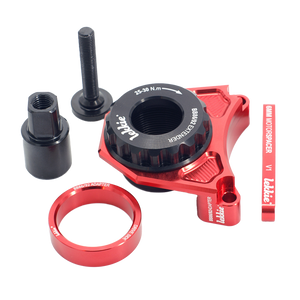

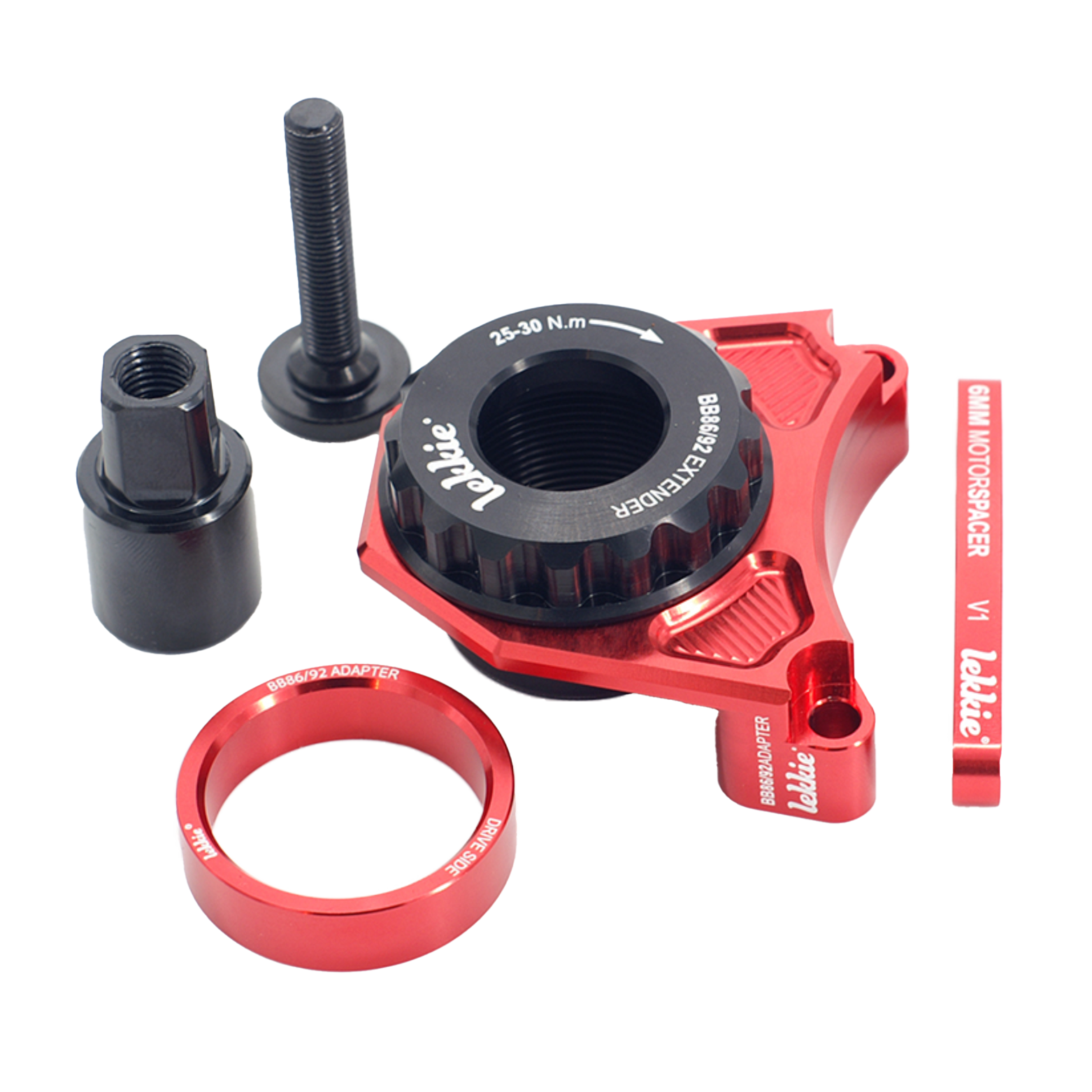

If your frame has a BB86 or BB92 bottom bracket, a standard Bafang BBS motor will not fit. The Lekkie BB86/92 Bafang Adapter makes it possible and looks bling in doing so.
Finally you can electrify those rad bikes with press-fit bottom brackets! No longer are the bike’s bottom bracket size dictating if it can or can’t be converted.
This BB86/92 Adapter allows a 68mm Bafang motor to fit a BB86/BB92 bottom bracket (inner diameter 41mm) frame without having to modify or disassemble the motor. Note, this will only work with frame with 41mm inner diameter BB.
There are two options of which to choose depending which crank arms you have. The V2.5 Bolt fits standard Bafang crank arms, and Lekkie V1, V2.1, & V2.5. The V3.1 Bolt is extended, and fits only the Lekkie Buzz Bars 3.1.
Note: This adapter is designed to work with frames with a BB frame tube outer diameter of less than 47mm ideally (48mm will work but motor will space out 2mm).
Feel free to contact us before purchasing this if you are unsure.
